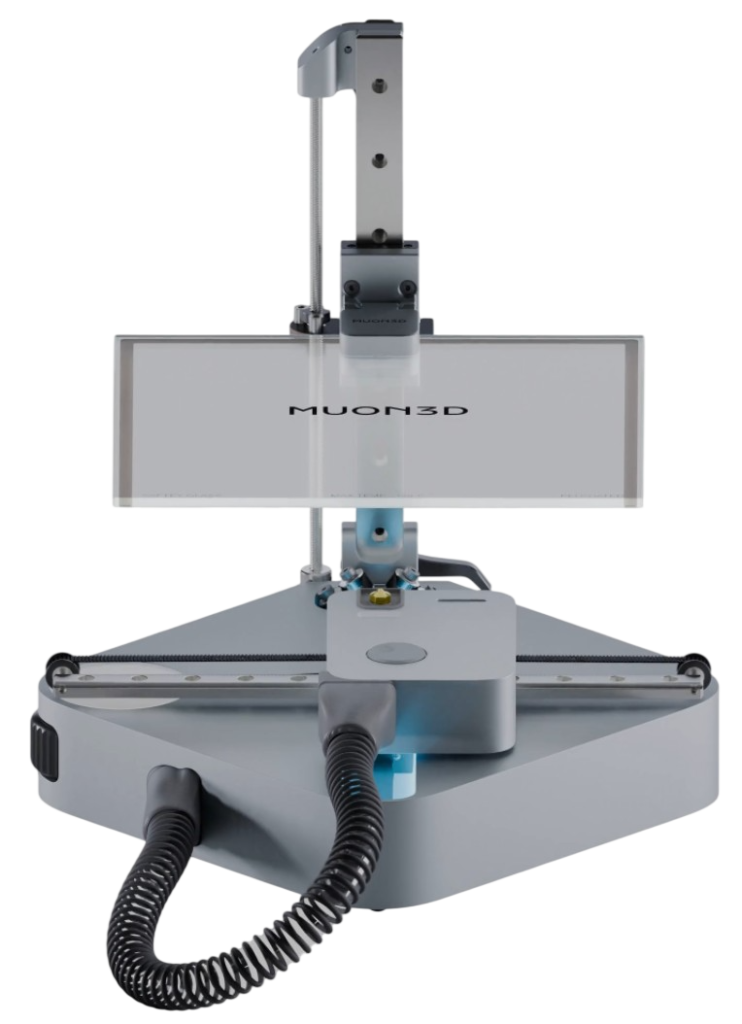

MUON3D

M1

Print Anything, Anywhere

As seen on

3D Printing Nerd

3D Printing Nerd put the Muon3D M1 to the test: printing fast, and printing upside down.

Watch on YouTube

The video plays from YouTube, which can see your visit once you press play.

3D PRINT
WITH
FREEDOM

Engineers and Makers on the move, we built this for you.

Designed FOR:

Portability

Take anywhere or store small, easy to set up and fold away.

Performance

No performance compromises, rapid prototype with ease.

Modularity

Designed for future modular add-ons, add-on battery base for up to 15 hours off-grid printing.

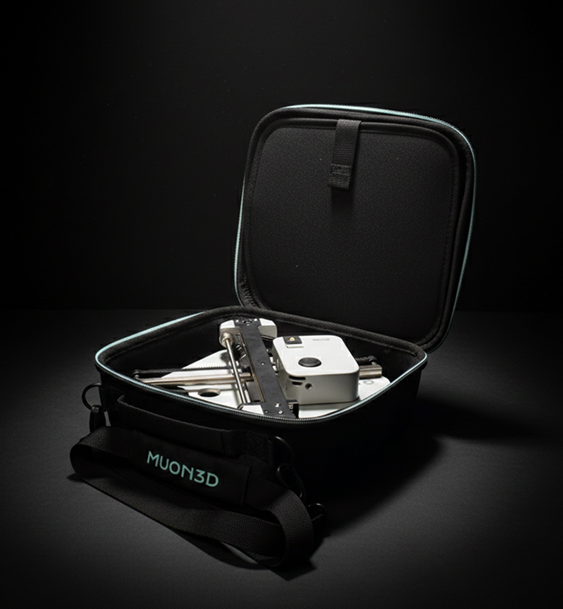

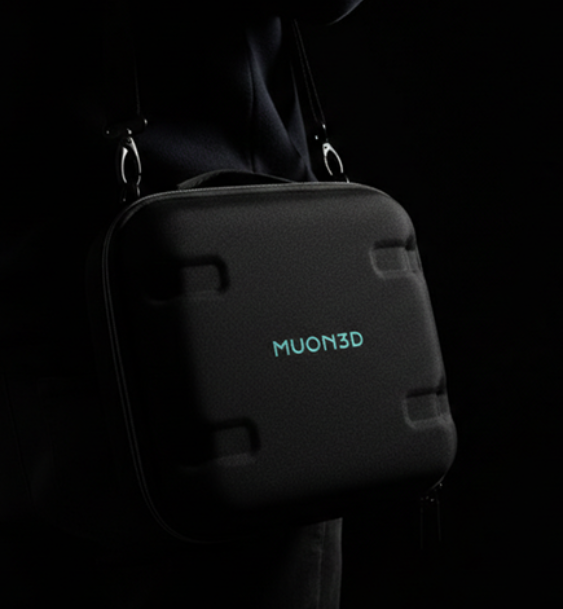

ULTIMATE PORTABILITY

Folds away into carry case for easy transport or storage.

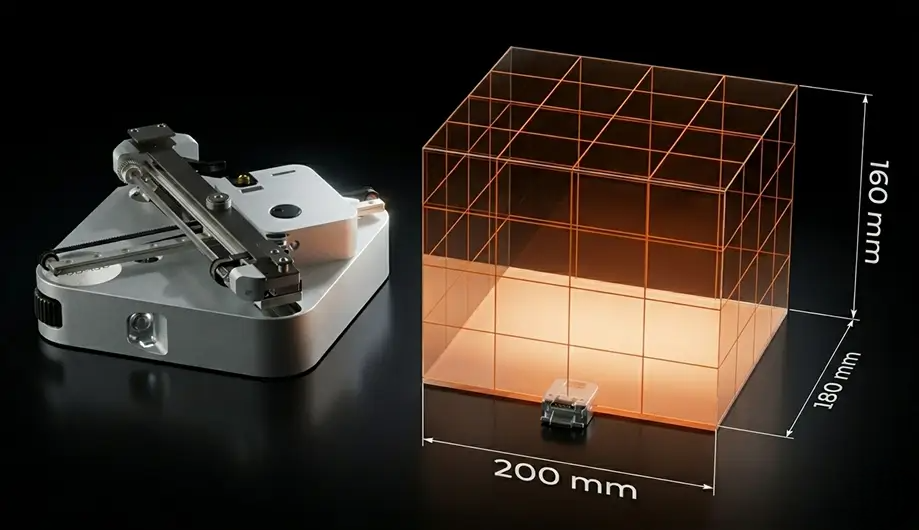

IMPRESSIVE BUILD VOLUME

  • Maximum print volume 200mm x 180mm x 160mm
  • Printer size folded: 200mm x 200mm x 80mm

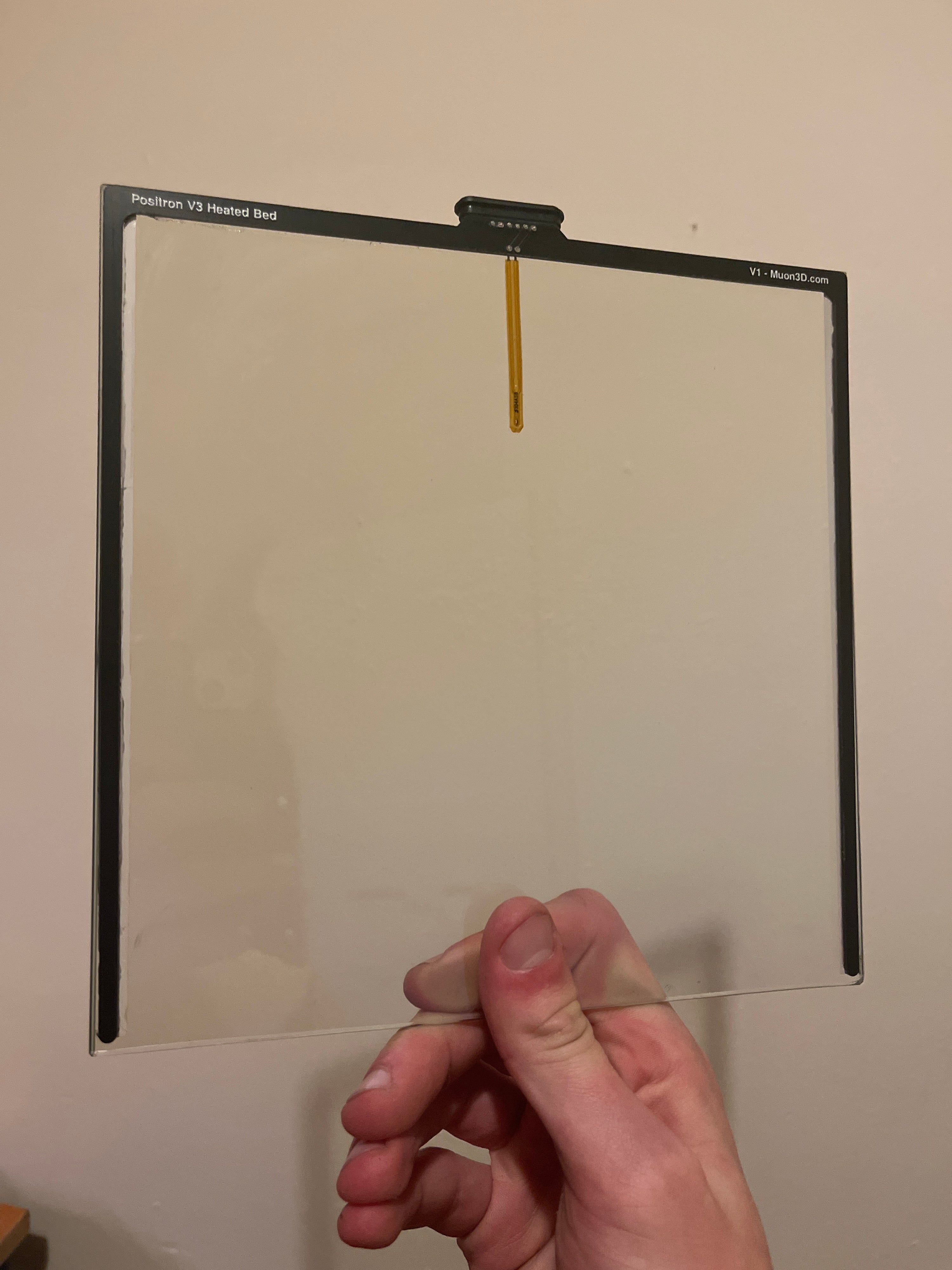

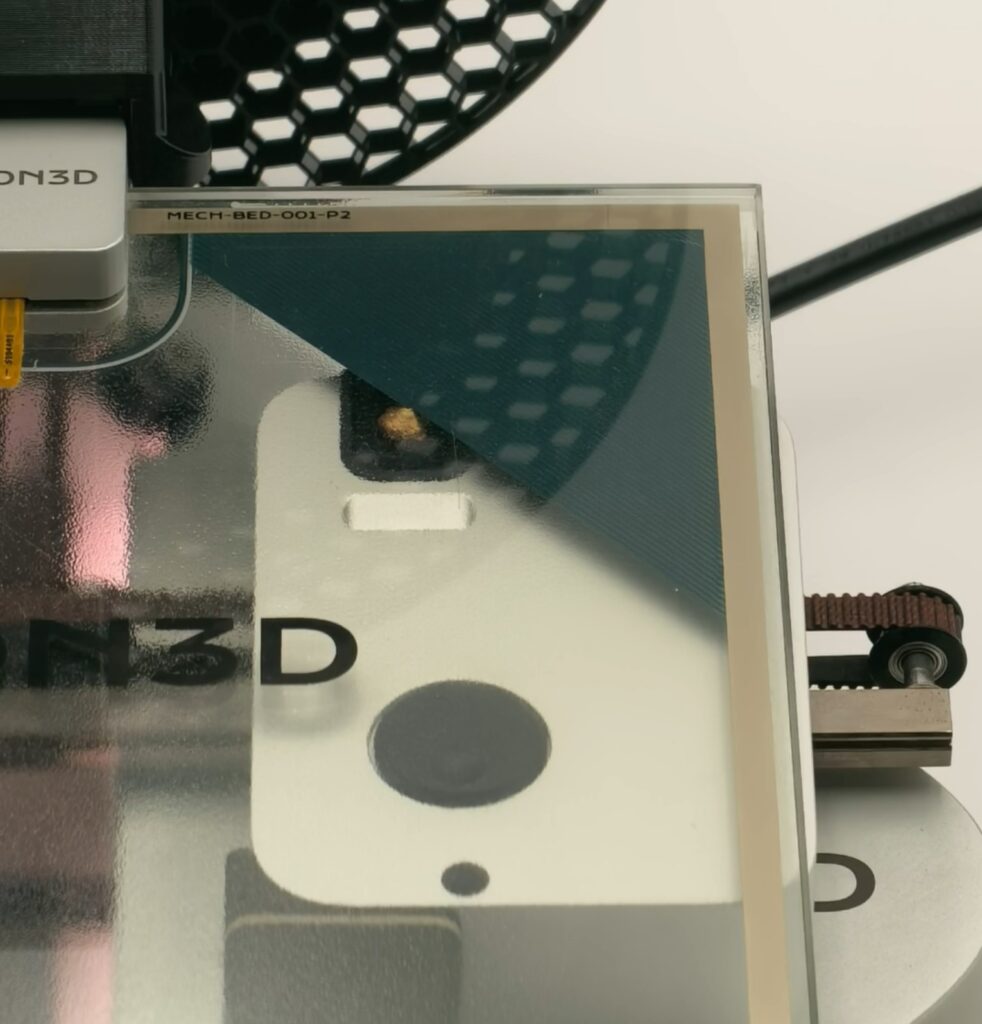

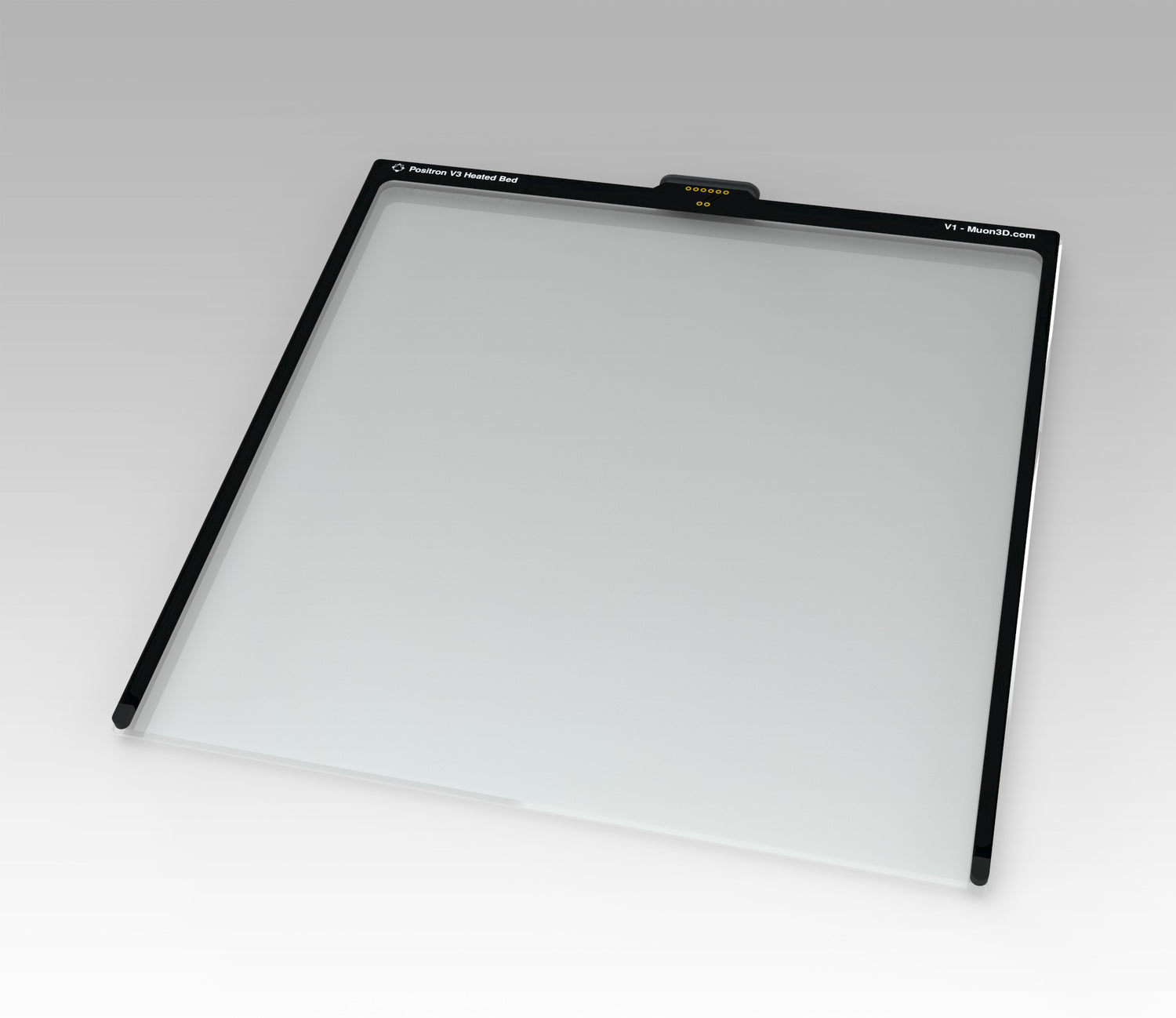

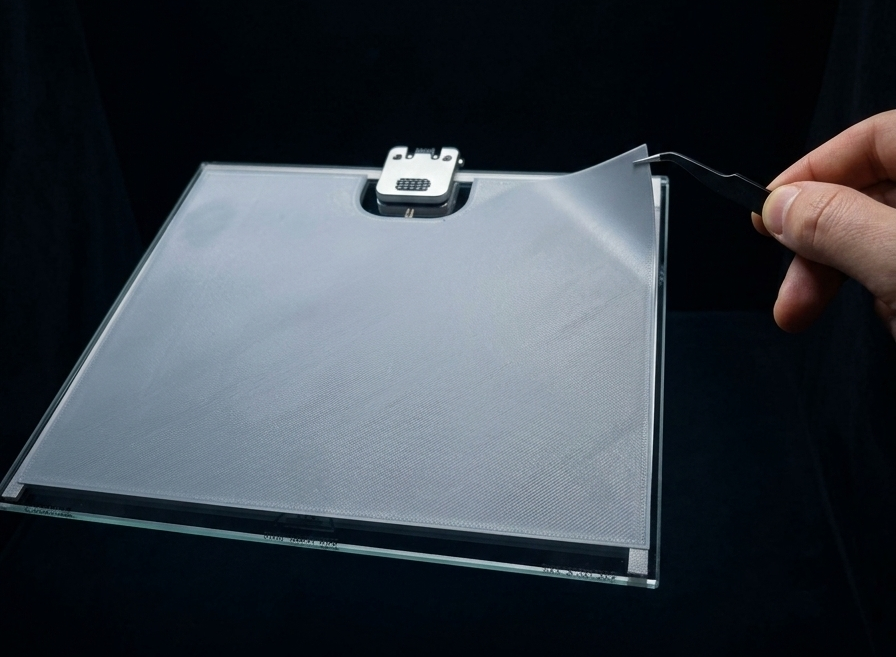

first layer clarity

World’s first fully transparent, PEI coated, heated bed, capable of 110°C.
See your first layer with perfect clarity.

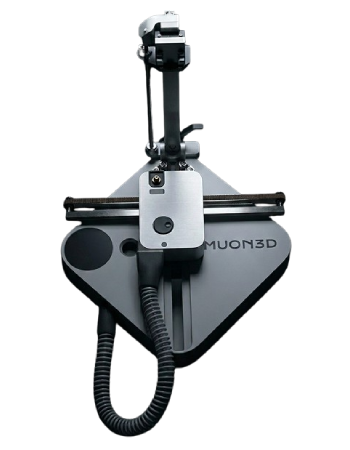

NEXT GENERATION PERFORMANCE

Designed from the ground up for ultimate performance, featuring:


  • High speed Inverted Core XY motion system

  • 300W 45V internal power supply

  • 30W cooling fan with remote hose air supply

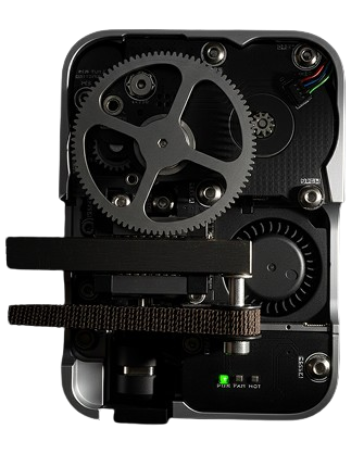

  • Ultra-light direct drive toolhead

  • 260°C 100W high-flow 45mm3/s hotend

Real world printing speeds of 600mm/s at 20,000mm²/s, capable of high quality 9:30 Benchy.

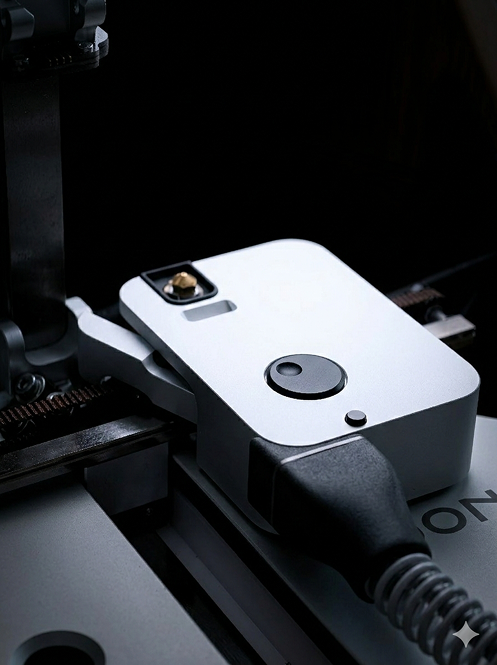

EFFORTLESS OPERATION

Easy to setup, fold away, and print:

  • Built-in filament cutter
  • Folds away in seconds

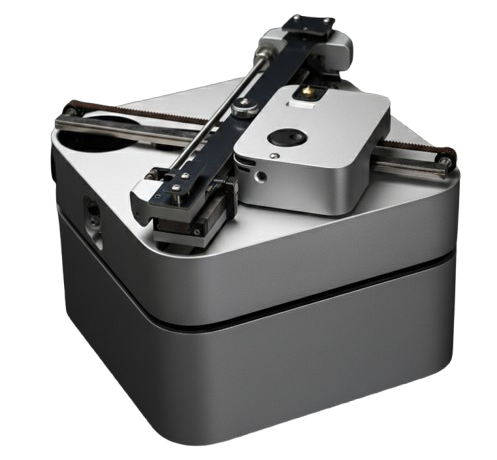

MODULAR BATTERY PACK

1kWh battery pack add-on allows:

  • Up to 15 hours off grid printing (PLA)
  • Power loss protection in the event of a power cut

Sign up now to lock in
your priority access

Sign up now to unlock priority access

Specifications

general

Build Volume

200mm × 180mm × 160mm (5.6L)

size (folded)

200mm x 200mm x 80mm (3.2L)

weight

2.9 kg

motion system

speed

600 mm/s

acceleration

20,000 mm/s²

resonance compensation

Accelerometer Auto-Calibration

bed probe technology

Zero-Deflection nozzle loadcell

extrusion

extruder type

direct drive

max temperature

260 °C

max Flow rate

45 mm³/s

materials

PLA, PETG, ABS, ASA, TPU

nozzle materials

brass
hardened steel

heater power

100 w

Heated Bed

material

pei-coated tempered glass

HEATER ELEMENT

TRANSPARENT INDIUM TIN OXIDE (ITO)

heater POWER

180 W

Max Temperature

110 °c

cooling system

fan type

high-pressure CPAP blower

airflow

16 CFM

power

30 W

cooling delivery

remote blower via umbilical hose

power

power supply

integrated

MAX SYSTEM POWER

300 W

system voltage

45 v

CONNECTIVITY & I/O

I/O

1x USB-A

1x Micro-HDMI

control

HAPTIC DIAL

WEB UI (Wi-Fi)

EXPANSION SYSTEM

STACKABLE Expansion Port (Accessory & Power Interface)

battery pack (accessory)

capacity

1 kWh

BATTERY LIFE

PLA up to 15hrs
PETG up to 10hrs
ASA up to 5hrs

POWER

180 W

SIZE

200mm X 200mm X 80mm

weight

6 kg

Acknowledgements

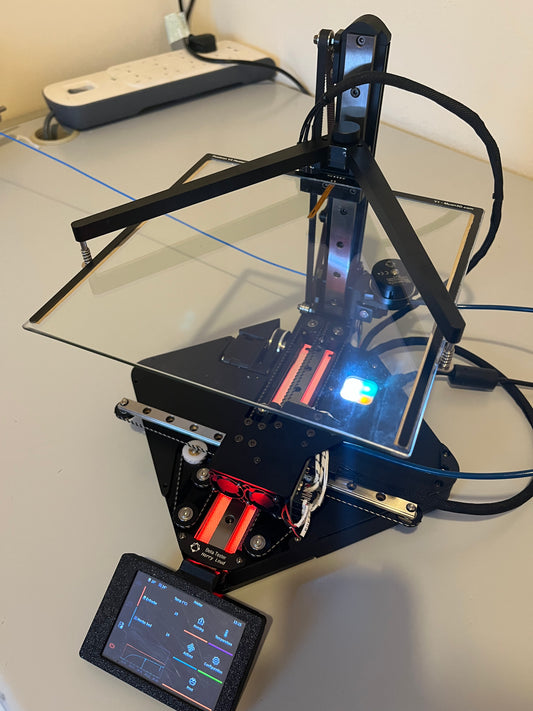

Special thanks to Kraylin and Positron3D for the original open-source Positron V3 project. Our printer is a complete ground-up redesign inspired by the motion system and design constraints from the Positron project.
