TFT 3.5" LCD kit for Positron V3 - DIY(pre-cut)

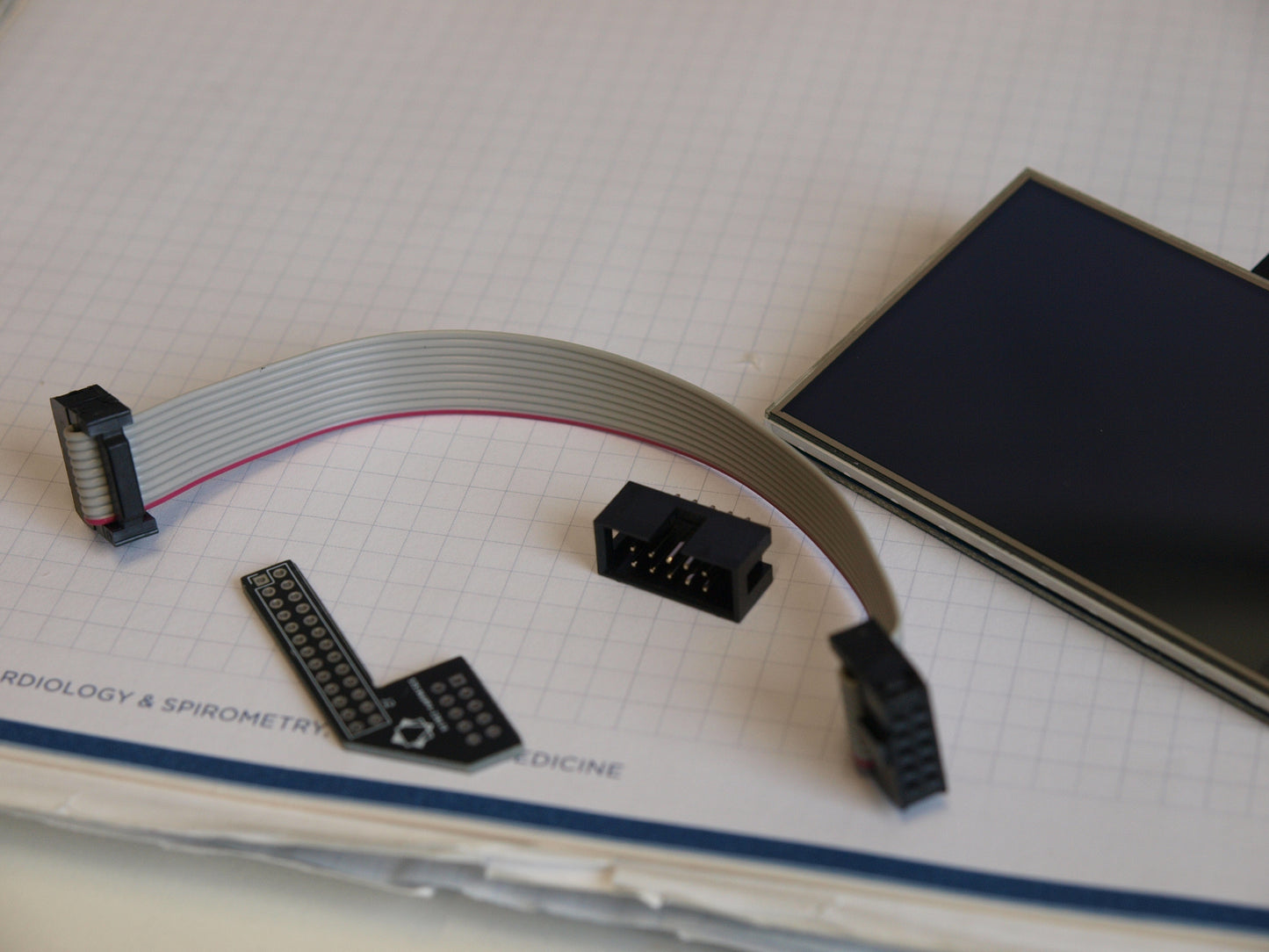

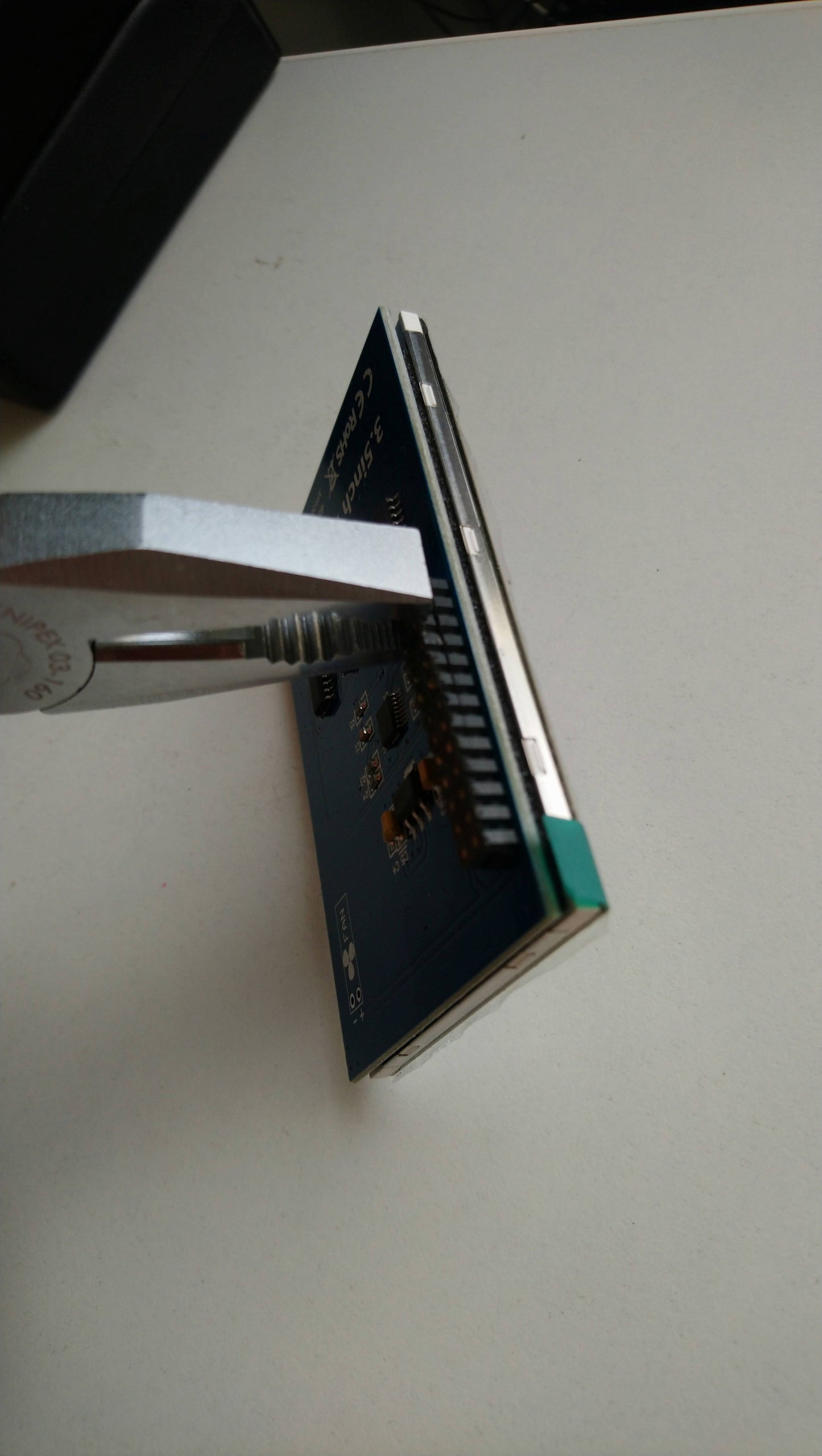

TFT LCD DIY not assembled, just parts. You have to print your enclousure and assemble/solder all parts.  But the TFT connector will be precut.

• Screen 3.5" TFT resistive touch 480x320px - with pre-cut connector
• Stylus
• Header pins to IDC connector PCB

• IDC connector for display PCB
• Ribbon cable for connecting to RPi IDC

Works best with RPi breakout board so if you already don't have that you can order it as separate product. You can find STL for printing housing on Muon3D github

DISCLAIMER: Please note that this screen is more or less same as the original positron V3 design, there is new more advanced capacitivy touch screen planned for developement. So If you don't mind to wait till the Q4 23 you will be able to get better screen then.

Installation

• Follow instrucrion from LCD-Show to install drivers
• Then install Klipper Screen
• You then have to edit /boot/config.txt and add lines below to it
• enable_uart=1
• dtoverlay=pi3-miniuart-bt
• then remove all console setting lines from /boot/cmdline.txt. This should recover communication with SKR pico again. As it get distrupted by LCD-Show installation.
