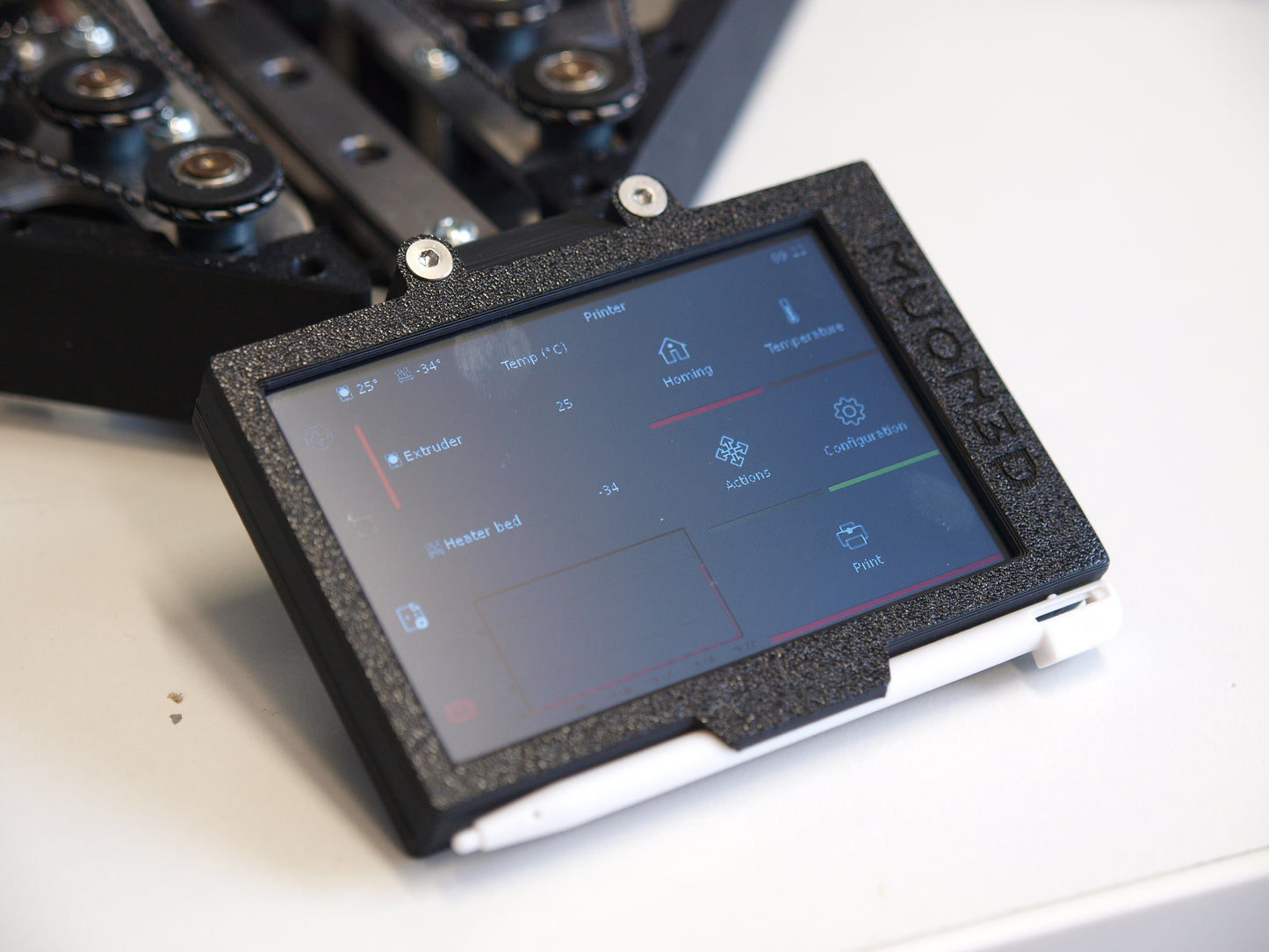

TFT 3.5" LCD for Positron V3

Complete assembled LCD kit.

Contains

• Screen 3.5" TFT resistive touch 480x320px
• Stylus

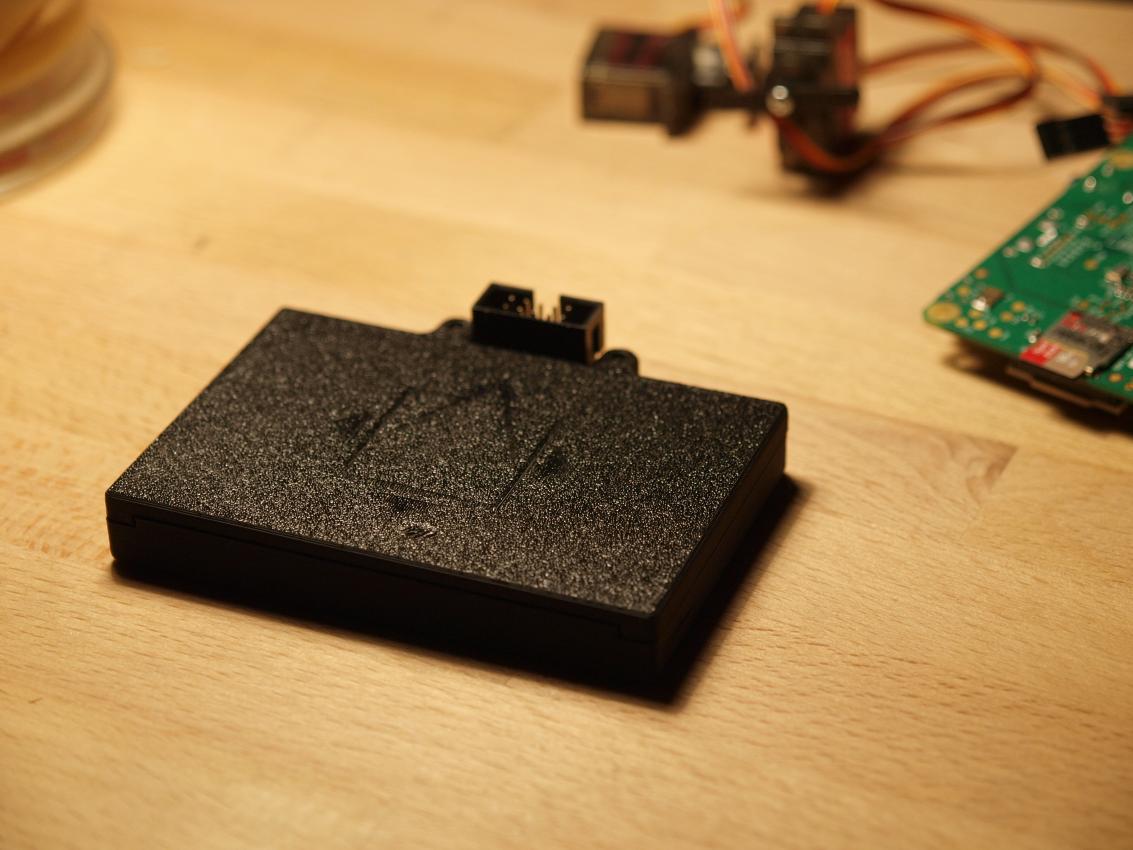

• 3D printed housing - 100% infill Jet Black PLA (Prusament)

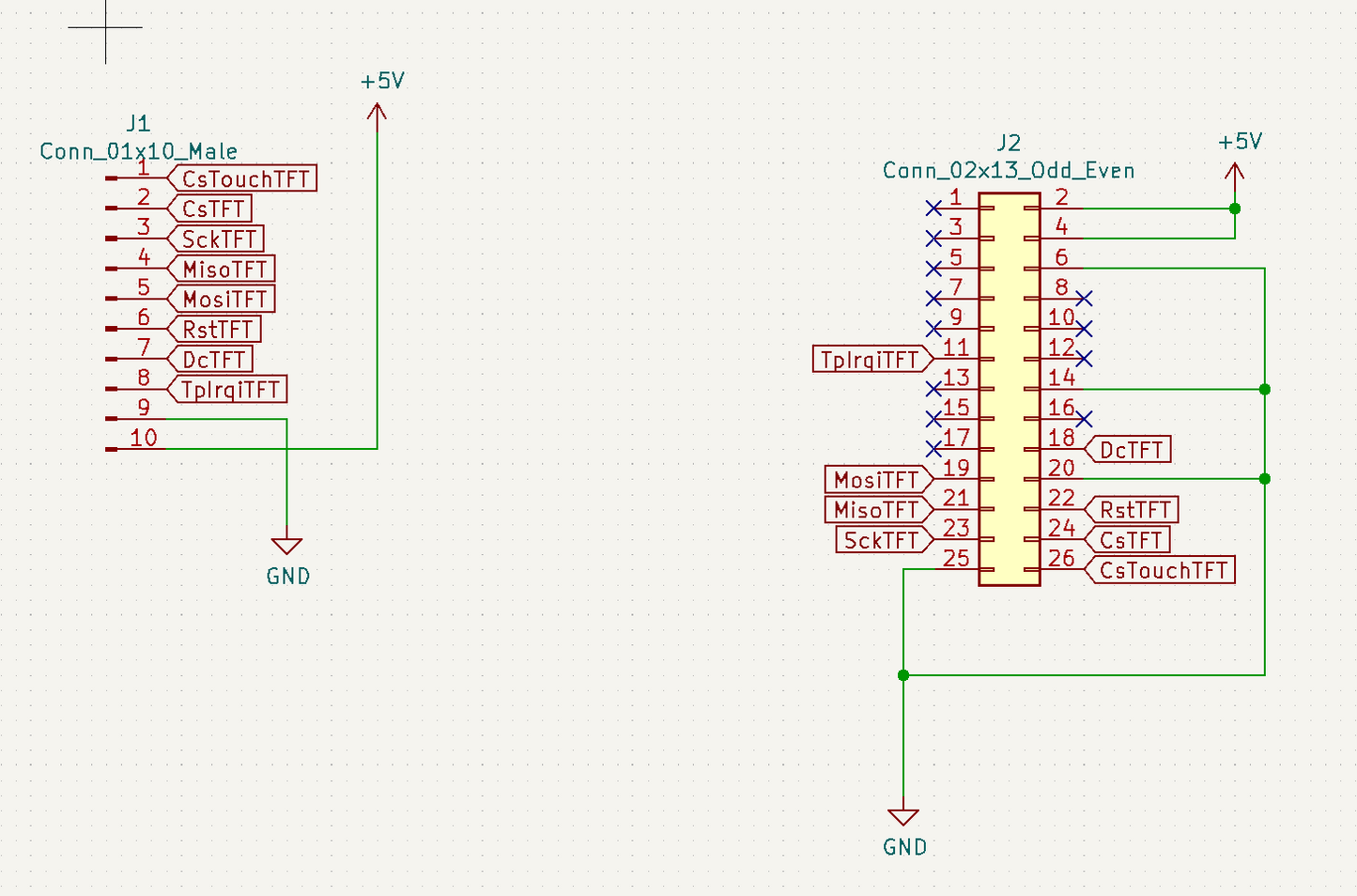

• header pins to IDC connector PCB

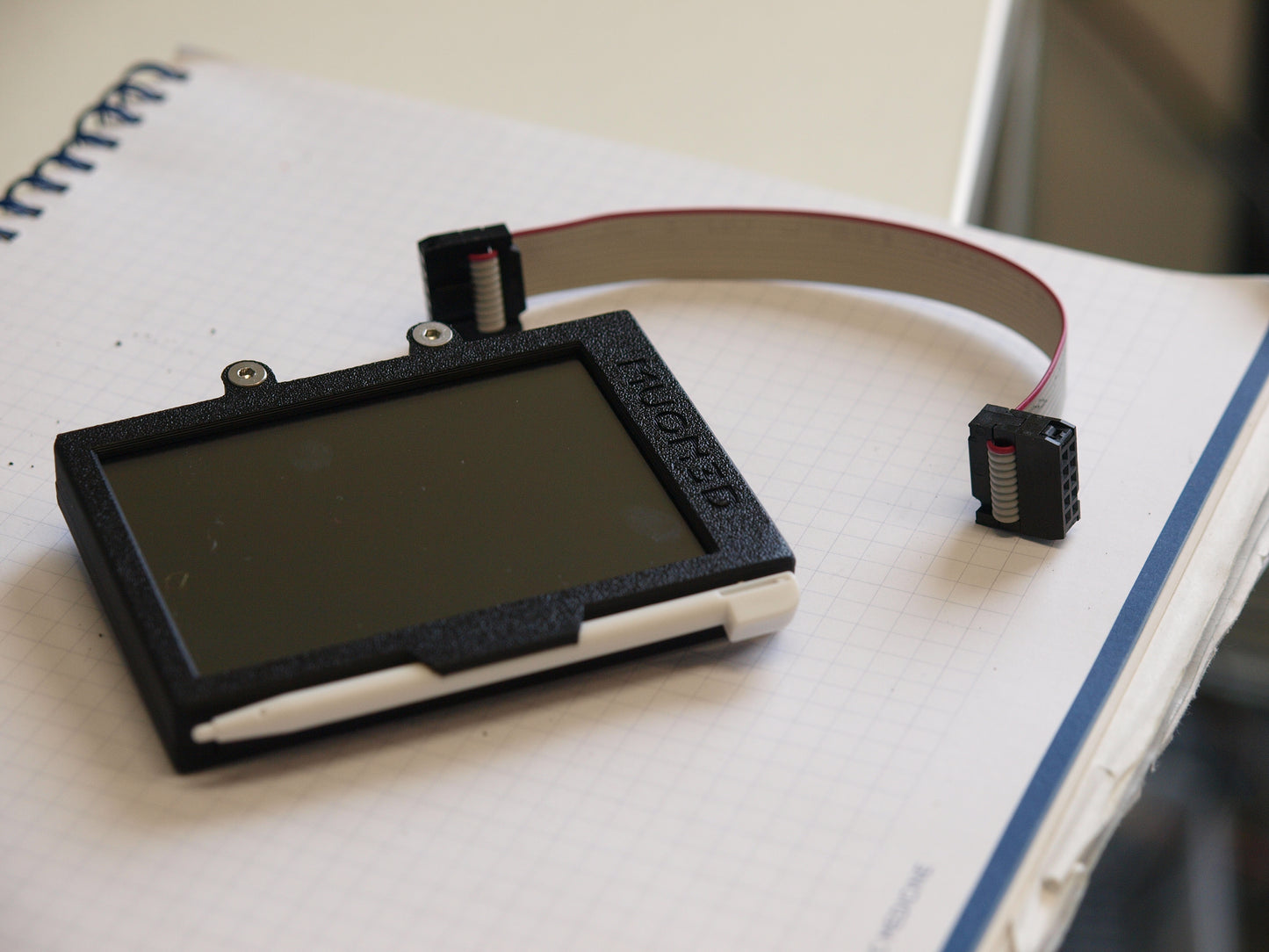

• Ribbon cable for connecting to RPi IDC

Works best with RPi breakout board so if you already don't have that you may order also that part. You can find STL for printing housing on Muon3D github

DISCLAIMER: Please note that this screen is more or less same as the original positron V3 design, there is new, more advanced HD capacitive touch screen planned for development with an estimated release date of Q4 23.

Installation

• Follow instruction from LCD-Show to install drivers
• Then install Klipper Screen
• You then have to edit /boot/config.txt and add lines below to it
• enable_uart=1
• dtoverlay=pi3-miniuart-bt
• then remove all console setting lines from /boot/cmdline.txt. This should recover communication with SKR pico again. As it gets distrupted by the LCD-Show installation.
